DOC-ADMIN-Monitoring | TourMonitor Admin Einführung in die Überwachungsfunktion
2:00 Min
Intro
In Monitoring pages, administrator could track scheduled tasks, driver application usage status and external service status.

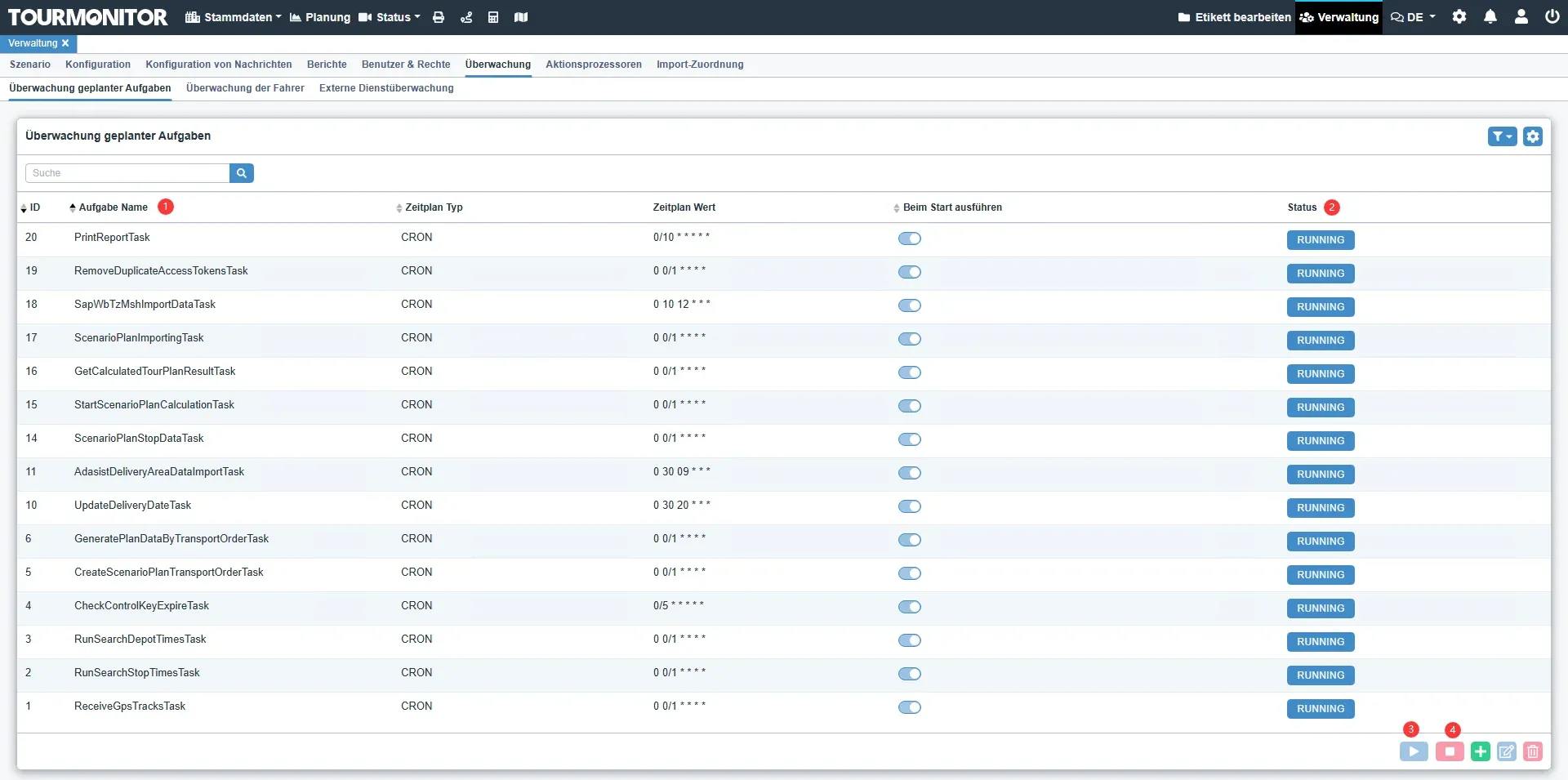

1. Scheduled Task Monitoring
| Num | Field | Info | Function |
| 1 | Scheduled Task list | The list which displays all scheduled tasks | Administrator could click Add button at the bottom-right corner of the scheduled task list to add a new scheduled task.
There are two types of Schedule Type. One is CRON, and the following Schedule Value should use cron expression to configure the cycle. The other is PERIODIC, which uses hour, minute and second classes to configure the cycle.
Run On StartUp indicates whether the task is started when the system starts.
Administrator could select any existing scheduled task and click Edit or Delete button at the buttom-right corner of the scheduled task list to edit or remove an existing scheduled task. |
| 2 | Status | The column shows the scheduled task status | If the scheduled task is in action, the status would show as RUNNING. |
| 3 | Start Task | The button to start a task | When select an existing task and click Start Task button, the task will be triggered and started. |
| 4 | End Task | The button to end a task | When select and existing task and click End Task button, the task will be ended. |

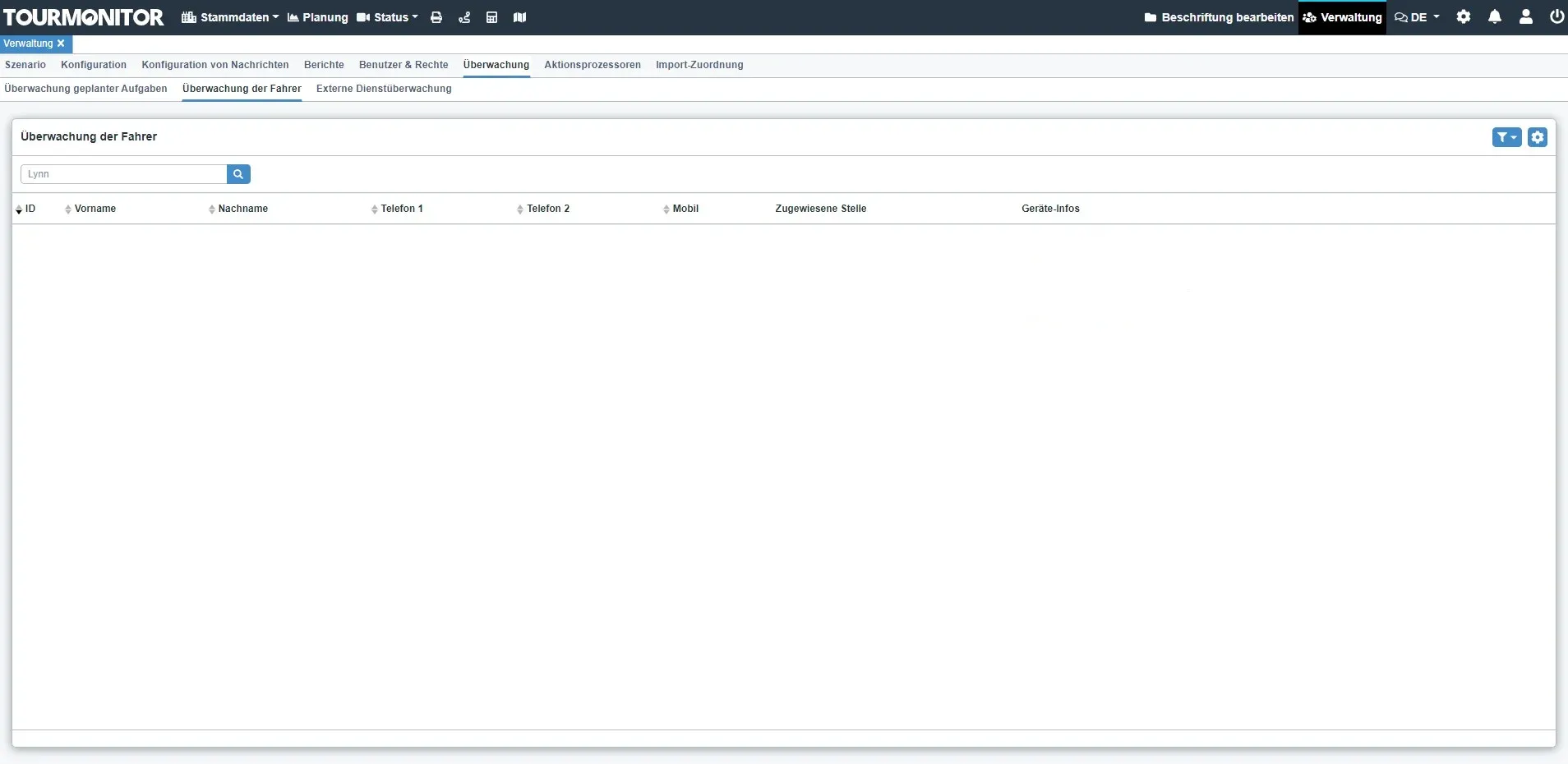

2. Driver Monitoring
This module is mainly used to show info about app usage by drivers，the goal is that a company admin has quick aceess to a overview of jobmoitor users, their devices, assigned jobs and see the app version
in that way the company admin can talk in real to the jobmon users and advice them to update the app if needed.The Assigned Job field shows that the delivery date is the job allocated between the current date and the current date five days ago.

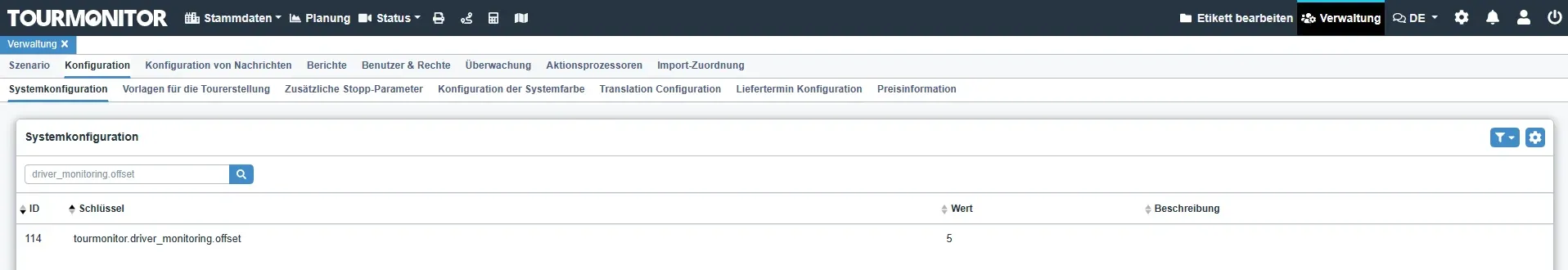

These five days are the default values set in configs and can be modified（shown in the screenshot below). The display format of the Device Info field is device name (app version - platform). A driver may have multiple devices, sorted by LastUpdateTime.

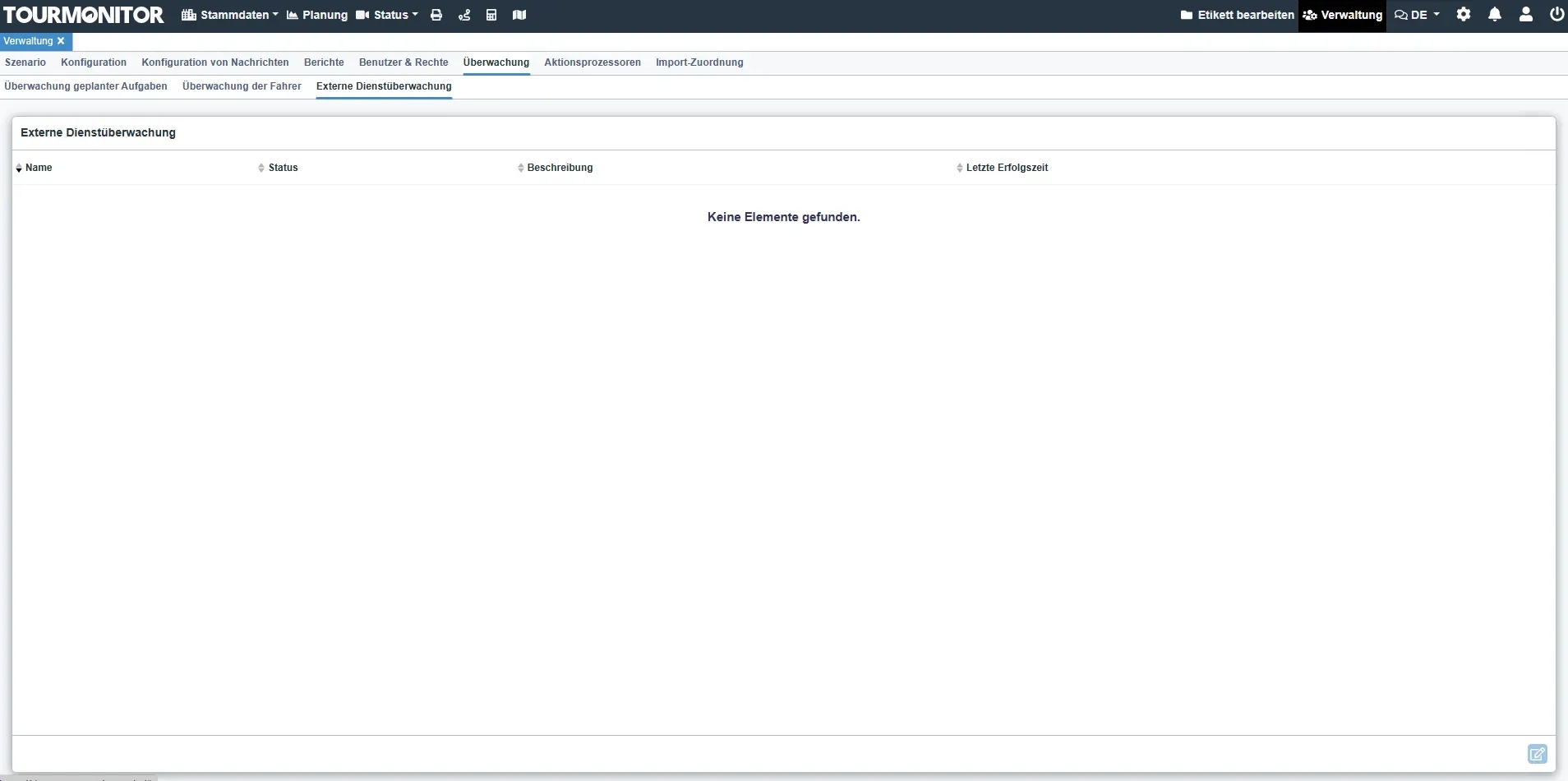

3. External Service Monitoring
The page to track the status of external services.
